How Activated Carbon Works in Water Treatment: A Deep Dive into Purification

What Is Activated Carbon?

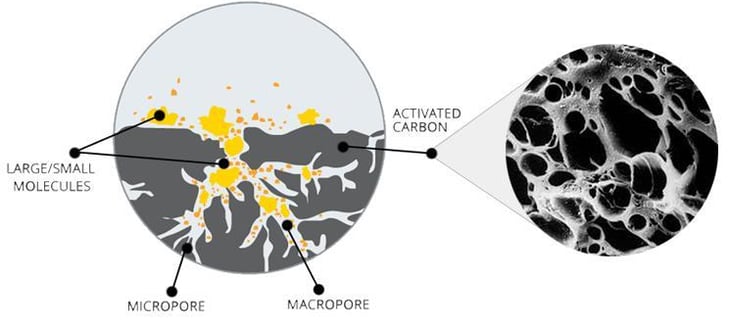

Activated carbon is a form of carbon (often derived from materials like coal, coconut shells, or wood) that has been processed to create a highly porous structure with an enormous surface area. This structure, riddled with tiny pores and crevices, makes activated carbon exceptionally effective at trapping contaminants. A single gram of activated carbon can have a surface area of 500 to 1500 square meters, providing ample space for adsorption—the process that makes it so powerful in water treatment.

How Does Activated Carbon Work in Water Treatment?

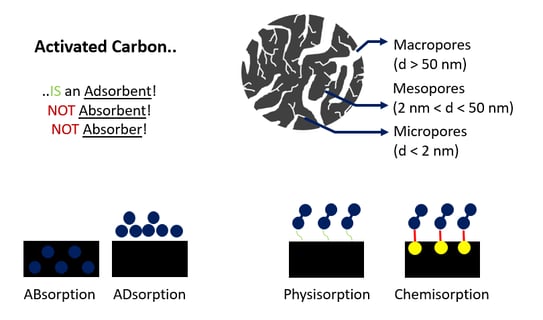

Activated carbon works primarily through adsorption, a process where contaminants in water adhere to the surface of the carbon. Unlike absorption (where substances are soaked up like a sponge), adsorption involves molecules sticking to the carbon’s surface due to physical or chemical attractions. Here’s a step-by-step look at how it works:

1. Contact with Water: Contaminated water flows through or over activated carbon, typically housed in a filter bed, cartridge, or column.

2. Adsorption of Contaminants: As water passes through, contaminants are attracted to the carbon’s porous surface. The pores trap organic compounds, chemicals, and even some gases, effectively removing them from the water.

3. Clean Water Output: The purified water exits the system, leaving contaminants bound to the carbon. Over time, the carbon becomes saturated and must be replaced or regenerated.

This process is highly effective because the vast surface area of activated carbon provides countless binding sites for contaminants. The carbon’s surface may also be chemically treated to enhance its attraction to specific pollutants, such as heavy metals.

Contaminants Removed by Activated Carbon

Activated carbon is highly versatile and can remove a wide range of contaminants from water. Here’s a breakdown of what it can tackle:

1. Organic Compounds:

   • Pesticides and Herbicides: Such as atrazine or glyphosate, commonly found in agricultural runoff.

   • Volatile Organic Compounds (VOCs): Including benzene and toluene, often from industrial sources.

   • Polycyclic Aromatic Hydrocarbons (PAHs): Byproducts of fuel combustion.

2. Chlorine and Chlorination Byproducts:

   • Activated carbon effectively removes chlorine (used in disinfection) and its byproducts, like trihalomethanes (THMs), which can be harmful in high concentrations.

3. Taste and Odor Compounds:

   • Substances like geosmin and methylisoborneol (MIB), which cause earthy or musty tastes and odors in water, are easily adsorbed.

4. Pharmaceuticals and Personal Care Products (PPCPs):

   • Trace amounts of drugs (e.g., ibuprofen) and chemicals from cosmetics can be removed, addressing emerging concerns in water treatment.

5. Some Heavy Metals:

   • When chemically enhanced (e.g., impregnated with silver or sulfur), activated carbon can remove metals like lead, mercury, or cadmium.

6. PFAS (Per- and Polyfluoroalkyl Substances):

   • Certain activated carbons are effective against these persistent “forever chemicals” found in industrial and firefighting runoff.

Limitations: Activated carbon is less effective at removing inorganic contaminants like nitrates, fluorides, or salts, and it doesn’t remove microorganisms unless combined with other technologies (e.g., UV or membrane filtration).

Forms of Activated Carbon in Water Treatment

Activated carbon comes in several forms, each suited to specific applications in water treatment:

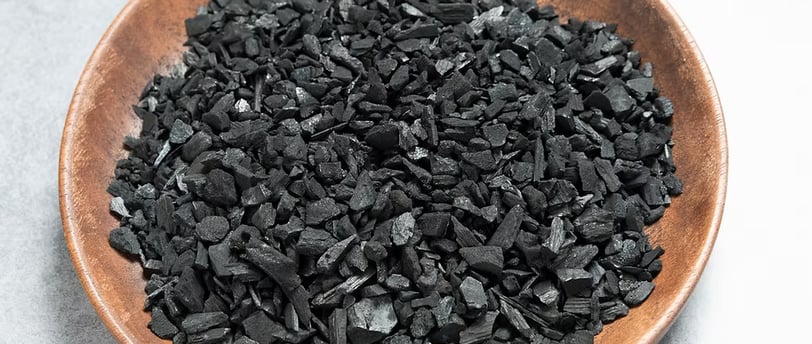

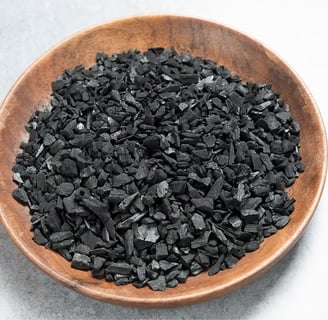

1. Granular Activated Carbon (GAC):

   • Description: Coarse granules (0.5–2 mm) used in large-scale filter beds or columns.

   • Applications: Common in municipal water treatment plants and industrial systems for high-flow purification.

   • Advantages: High capacity, regenerable, and cost-effective for large volumes.

   • Example: GAC beds in water treatment plants remove chlorine and organic compounds.

2. Powdered Activated Carbon (PAC):

   • Description: Fine powder (<0.1 mm) added directly to water or used in temporary treatments.

   • Applications: Used in batch processes or seasonal treatments (e.g., addressing taste/odor issues during algal blooms).

   • Advantages: Highly effective for rapid response but not reusable.

   • Example: PAC dosing in reservoirs to combat geosmin.

3. Activated Carbon Blocks:

   • Description: Compressed carbon formed into solid blocks, often combined with other filter media.

   • Applications: Found in point-of-use systems like under-sink filters or pitcher filters.

   • Advantages: Compact, high-efficiency, and capable of removing smaller particles.

   • Example: Home water purifiers for drinking water.

4. Impregnated Activated Carbon:

   • Description: Carbon treated with chemicals (e.g., silver, iodine) to target specific contaminants like heavy metals or bacteria.

   • Applications: Specialized industrial or medical water treatment.

   • Advantages: Enhanced selectivity for challenging pollutants.

   • Example: Silver-impregnated carbon in hospital water systems to reduce bacterial growth.

5. Extruded or Pelletized Carbon:

   • Description: Cylindrical pellets used in cartridge filters.

   • Applications: Common in commercial and residential filtration systems.

   • Advantages: Uniform flow and easy replacement.

   • Example: Cartridge filters in reverse osmosis systems.

Applications of Activated Carbon in Water Treatment

Activated carbon is applied in various water treatment contexts, each leveraging its adsorption capabilities:

1. Municipal Water Treatment:

   • GAC beds are used to remove chlorine, THMs, and organic compounds, improving taste and safety for drinking water.

   • Example: Treating surface water from rivers or reservoirs.

2. Industrial Water Treatment:

   • Used to purify process water, treat wastewater, or remove VOCs in industries like pharmaceuticals, food processing, or manufacturing.

   • Example: Removing solvents from factory effluents.

3. Point-of-Use Systems:

   • Carbon block or cartridge filters in homes, offices, or portable purifiers remove chlorine, odors, and trace contaminants.

   • Example: Kitchen faucet filters for drinking water.

4. Emergency or Seasonal Treatment:

   • PAC is added to water sources during contamination events, such as algal blooms or chemical spills.

   • Example: Temporary dosing to address taste issues in a reservoir.

5. Aquarium and Aquaculture:

   • Activated carbon removes impurities and odors from water, ensuring a healthy environment for aquatic life.

   • Example: Carbon filters in fish tanks.

Tips for Using Activated Carbon Effectively

1. Match Form to Application: Choose GAC for large-scale treatment, PAC for rapid response, or carbon blocks for home use.

2. Monitor Saturation: Replace or regenerate carbon when it becomes saturated to maintain effectiveness.

3. Combine Technologies: Pair activated carbon with other methods (e.g., UV for disinfection or reverse osmosis for salts) for comprehensive treatment.

4. Consider Contaminant Type: Select impregnated carbon for heavy metals or PFAS if needed.

5. Follow Maintenance Schedules: Regular maintenance prevents channeling (uneven water flow) and ensures consistent performance.

Conclusion

Activated carbon is a cornerstone of water treatment, transforming contaminated water into a safe, clean resource through the power of adsorption. Its ability to remove organic compounds, chlorine, odors, and emerging contaminants like PFAS makes it indispensable in municipal, industrial, and residential settings. Available in forms like GAC, PAC, and carbon blocks, activated carbon offers versatile solutions tailored to diverse needs. By understanding how it works and applying it effectively, water tech professionals can ensure high-quality water while protecting the environment.

Ready to harness the power of activated carbon in your water treatment system? Explore the right form and application for your needs to achieve cleaner, safer water today!
