Pipeline Monitoring Systems: Advanced Solutions for Water Utilities

What Are Pipeline Monitoring Systems?

Pipeline monitoring systems are integrated technologies designed to continuously assess the condition of pipelines, detect issues like leaks, corrosion, or structural weaknesses, and provide actionable data to operators. These systems typically combine sensors, data analytics, and communication technologies to monitor pipelines in real time, ensuring optimal performance and safety.

In the context of water utilities, these systems are tailored to monitor pipelines carrying potable water, wastewater, or stormwater. They can detect a range of issues, from small leaks to significant structural failures, and are often used in both underground and above-ground pipelines. Advanced systems may employ technologies like vibration sensors, acoustic monitoring, distributed temperature sensing (DTS), and distributed acoustic sensing (DAS) to provide a comprehensive view of pipeline health.

The adoption of pipeline monitoring systems is on the rise, driven by the need for sustainable and efficient water management. According to industry reports, the global pipeline monitoring system market was valued at USD 15.85 billion in 2023 and is projected to grow to USD 31.05 billion by 2032, with a compound annual growth rate (CAGR) of 7.8%. This growth reflects the increasing demand for advanced solutions to manage aging infrastructure and address water scarcity challenges.

In water utilities, the impact of these systems is tangible. For example, a utility that implements a monitoring system with vibration and acoustic sensors might reduce its non-revenue water by 10%, saving millions of liters of water annually. This not only cuts operational costs but also supports sustainability goals by conserving a precious resource.

How Do Pipeline Monitoring Systems Work?

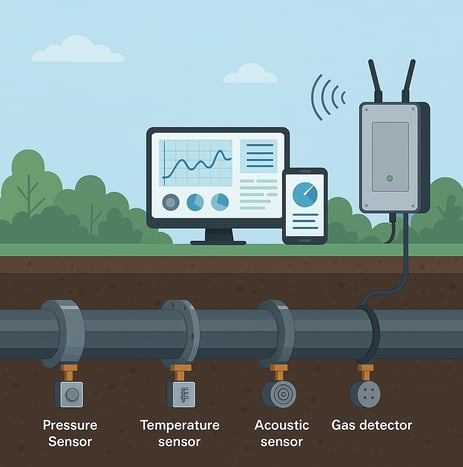

Pipeline monitoring systems operate through a combination of hardware, software, and data analytics to provide real-time insights. Here’s a step-by-step breakdown of how they work:

1. Sensor Deployment:

   • Sensors are installed along the pipeline at strategic points. These may include vibration sensors to detect unusual movements, acoustic sensors to listen for leaks, or temperature sensors to identify anomalies.

   • For example, vibration sensors can pick up subtle changes in pipeline movement caused by stress, corrosion, or external impacts, while acoustic sensors can detect the sound of water escaping from a leak.

2. Data Collection:

   • Sensors continuously collect data on pipeline conditions, such as pressure, flow rates, vibration levels, and temperature. This data is transmitted to a central system via wired or wireless communication networks.

   • Advanced systems may use fiber-optic cables for DTS and DAS, which allow for continuous monitoring along the entire length of the pipeline, detecting even minor changes in conditions.

3. Data Analysis:

   • The collected data is analyzed using advanced algorithms and criteria to assess pipeline health. For instance, vibration levels are compared against established thresholds to identify potential issues like pipe fatigue or structural weaknesses.

   • Machine learning models can also be employed to predict future failures based on historical data, enabling proactive maintenance.

4. Real-Time Alerts:

   • If an anomaly is detected—such as a leak, excessive vibration, or corrosion—the system generates real-time alerts. These alerts are sent to operators via dashboards, mobile apps, or email, allowing for immediate action.

   • For example, if a leak is detected through acoustic sensing, the system can pinpoint its location, helping crews respond quickly.

5. Reporting and Maintenance Planning:

   • The system provides detailed reports on pipeline conditions, highlighting areas of concern and recommending maintenance actions. This data-driven approach ensures that utilities can prioritize repairs and optimize their maintenance schedules.

Benefits of Pipeline Monitoring Systems for Water Utilities

Pipeline monitoring systems offer a range of benefits for water utilities, addressing key challenges like aging infrastructure, water loss, and regulatory compliance. Here’s how they make a difference:

1. Leak Detection and Water Loss Prevention:

   • Water loss due to leaks, often referred to as non-revenue water, is a major issue for utilities. Pipeline monitoring systems can detect even small leaks early, preventing significant water loss.

   • For example, acoustic sensors can identify the sound of a leak before it becomes a major issue, allowing utilities to repair it promptly.

2. Prevention of Catastrophic Failures:

   • By monitoring for issues like corrosion, flow constrictions, or structural weaknesses, these systems help prevent catastrophic failures such as pipe bursts, which can lead to flooding, service disruptions, and environmental damage.

   • Early detection of corrosion through vibration or temperature monitoring can extend the lifespan of pipelines, reducing the risk of sudden failures.

3. Improved Operational Efficiency:

   • Real-time data allows utilities to optimize pipeline operations, ensuring consistent flow and pressure while minimizing energy use. For instance, detecting blockages or flow constrictions can help operators adjust pumping systems to reduce energy costs.

4. Enhanced Safety and Compliance:

   • Pipeline failures can pose safety risks, such as water contamination or flooding, and may lead to regulatory fines. Monitoring systems ensure compliance with environmental and safety regulations by providing early warnings of potential issues.

   • For example, detecting a leak before it contaminates a water source helps utilities avoid penalties and maintain public trust.

5. Data-Driven Decision Making:

   • The detailed insights provided by these systems enable utilities to make informed decisions about maintenance and capital investments. Instead of replacing entire pipelines, utilities can target specific sections for repair, optimizing resource allocation.

How Pipeline Monitoring Systems Save Money for Utilities

The financial benefits of pipeline monitoring systems are significant, as they help utilities avoid costly repairs, reduce operational expenses, and extend the lifespan of their infrastructure. Here’s how they lead to cost savings:

1. Reduced Repair Costs:

   • Early detection of issues like leaks or corrosion allows utilities to perform targeted repairs rather than dealing with large-scale failures. For example, fixing a small leak detected through acoustic monitoring is far less expensive than repairing a burst pipe that causes flooding and road damage.

   • Preventative maintenance based on real-time data can also avoid the need for emergency repairs, which often come with higher labor and material costs.

2. Minimized Water Loss:

   • By identifying leaks early, pipeline monitoring systems reduce water loss, saving utilities the cost of treating and distributing water that never reaches customers. Globally, non-revenue water can account for 20–30% of a utility’s supply, so even small reductions can lead to substantial savings.

3. Lower Energy Costs:

   • Optimizing pipeline operations through real-time monitoring can reduce energy consumption. For instance, detecting and addressing flow constrictions ensures that pumps don’t have to work harder than necessary, lowering electricity costs.

4. Extended Pipeline Lifespan:

   • Continuous monitoring helps utilities address issues like corrosion or pipe fatigue before they cause irreparable damage. This extends the lifespan of pipelines, delaying the need for costly replacements.

   • For example, a pipeline that might have needed replacement in 10 years could last 20 years with proactive maintenance guided by a monitoring system.

5. Avoidance of Fines and Legal Costs:

   • Pipeline failures that lead to environmental damage or service disruptions can result in regulatory fines and lawsuits. Monitoring systems help utilities stay compliant, avoiding these financial penalties and protecting their reputation.

6. Optimized Maintenance Budgets:

   • Instead of relying on reactive or scheduled maintenance, utilities can use data from monitoring systems to prioritize spending. This ensures that maintenance budgets are allocated to the most critical areas, reducing unnecessary expenditures.

Pipeline monitoring systems are a game-changer for water utilities, offering a proactive approach to managing critical infrastructure. By combining advanced sensors, real-time analytics, and predictive maintenance, these systems detect issues like leaks, corrosion, and structural weaknesses before they escalate, ensuring reliable water delivery and protecting the environment. The benefits—ranging from reduced water loss to improved safety and compliance—translate into significant cost savings, making these systems a smart investment for utilities facing the challenges of aging pipelines and rising operational costs.

As the water industry continues to evolve, pipeline monitoring systems will play a crucial role in building resilient, sustainable, and cost-effective water networks. Utilities that adopt these technologies today will be well-positioned to meet the demands of tomorrow, delivering clean, safe water while keeping costs in check.
